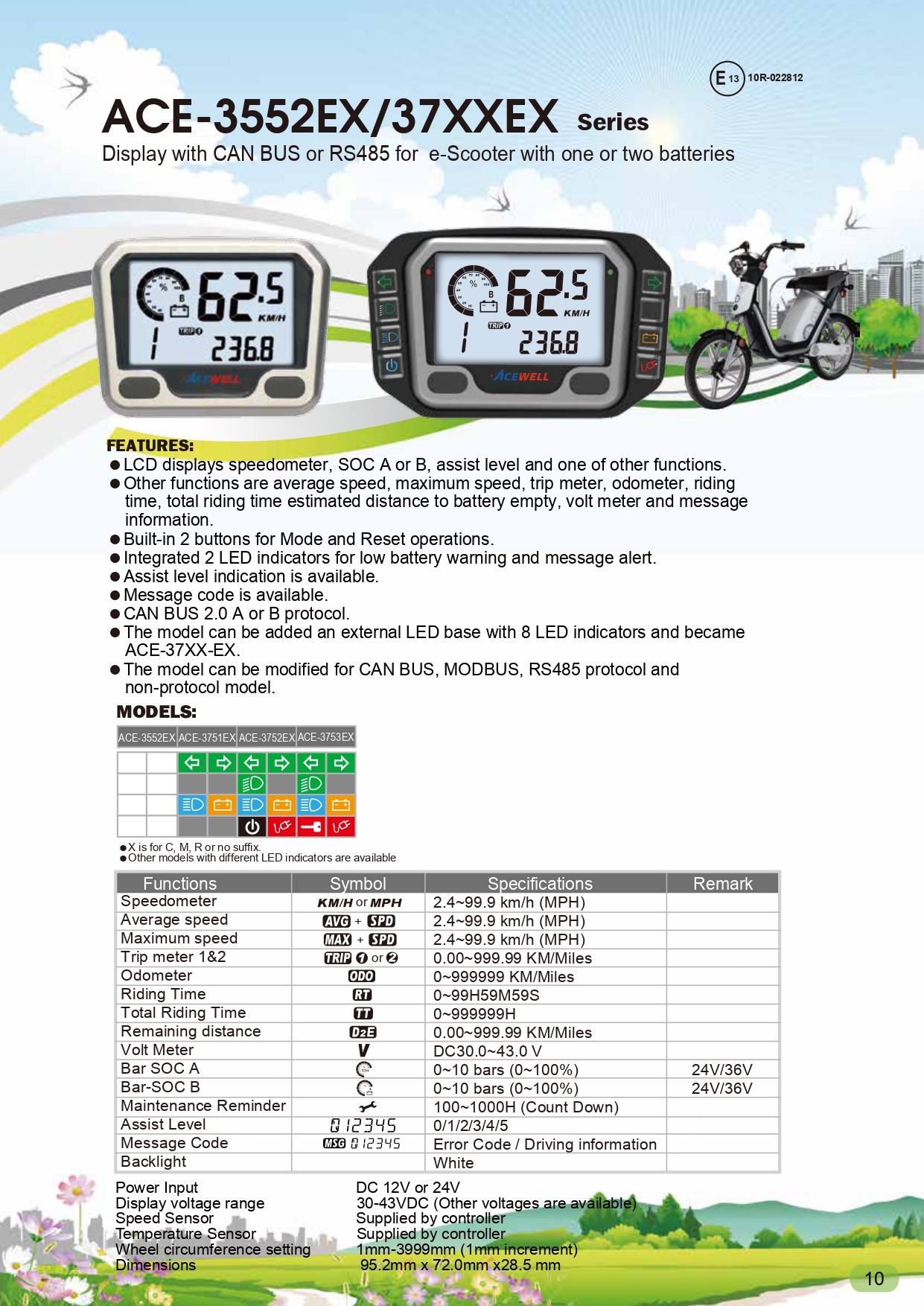

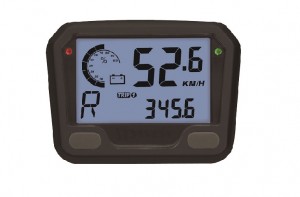

ACE-3552EX / 3700EX series Speedometer
Key Features:
- LCD displays speedometer, SOC A or B, assist level and one of other functions.
- Other functions are average speed, maximum speed, trip meter, odometer, riding time, total riding time estimated distance to battery empty, volt meter and message information.
- Built-in 2 buttons for Mode and Reset operations.
- Integrated 2 LED indicators for low battery warning and message alert.
- Assist level indication is available.
- Message code is available.
- CAN BUS 2.0 A or B protocol.
- The model can be added an external LED base with 8 LED indicators and became ACE-3700EX.
- The model can be modified for CAN BUS, MODBUS, RS485 protocol and non-protocol model.
Specification:
- Dimension: 95.2×72.0×28.5mm
- Certicate: CE, E mark
- Waterproof: IPX7
- ACE-3000EX series waterproof test at 2016 EV TAIWAN -
