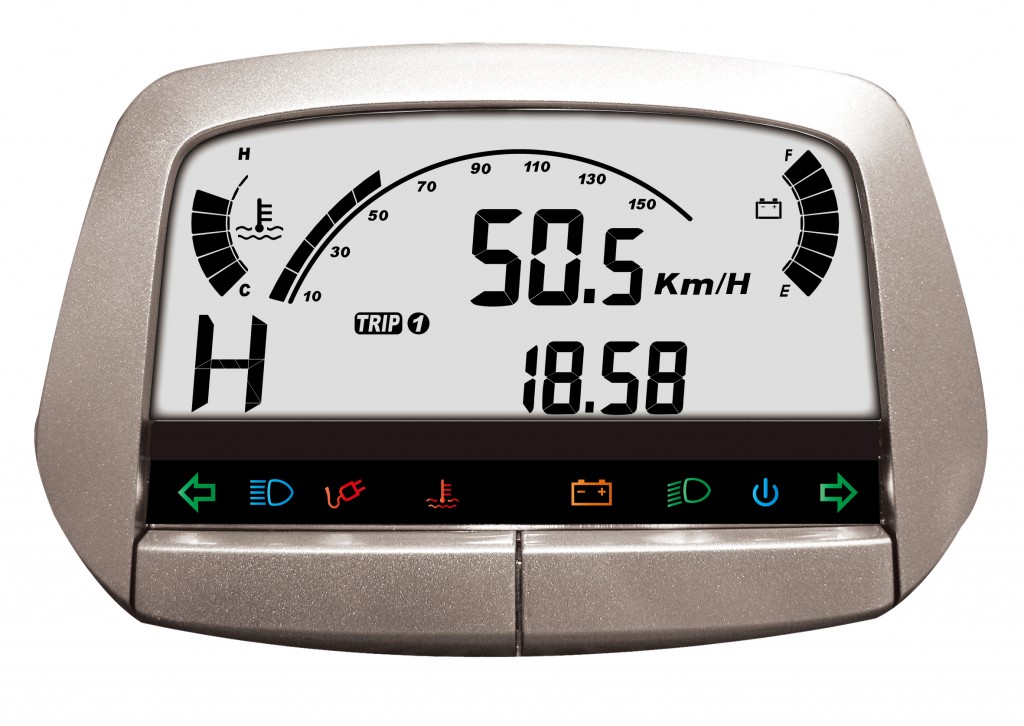

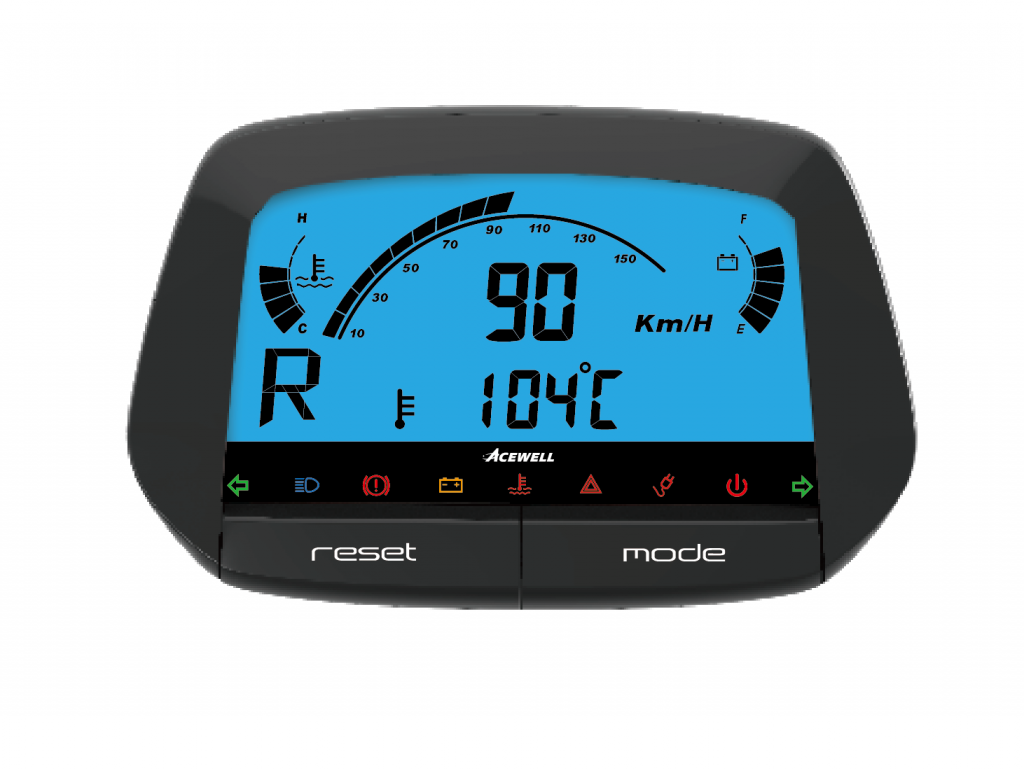

ACE-5000E (Non-CANBUS) Digital LCD Display Multi-function EV Speedometer
Digital LCD display, for analog system, Bar-graphic for volt meter and temperature.
Key features:
- Multi-functional LCD electric Bike/Vehicle computers
indicate bar-graphic SOC and battery temperature,
Speedometers, gear indicator/moving status and one of
other functions simultaneously. - Non-Canbus functionality.
- The 2nd row of LCD indicates message from controller or
battery. - Main Bar-graphic can be displayed for either speedometer
or SOC. - Assistance ratio or moving status display is available.
- Computers built-in 4 to 9 individual control LED indicators
for different purpose indicators. - Odometer and total running timer are stored in memory,
even when the power is off. - Built-in backlight will be turned on when light is switched on.
- Wide wheel circumference setting rang: 1-3999mm.
- Metric/Empire unit option available.
- Excellent water resistant, anti-vibration structure and noise
immunity design.
Specification:
- Dimension: 130.1 mm x 82.8 mm x 27mm
- Certificate: E mark, CE
- Waterproof: IP X7
- Upper Case Color: BK / SL
- Speed Sesor: Reed/Hall sensor optional
